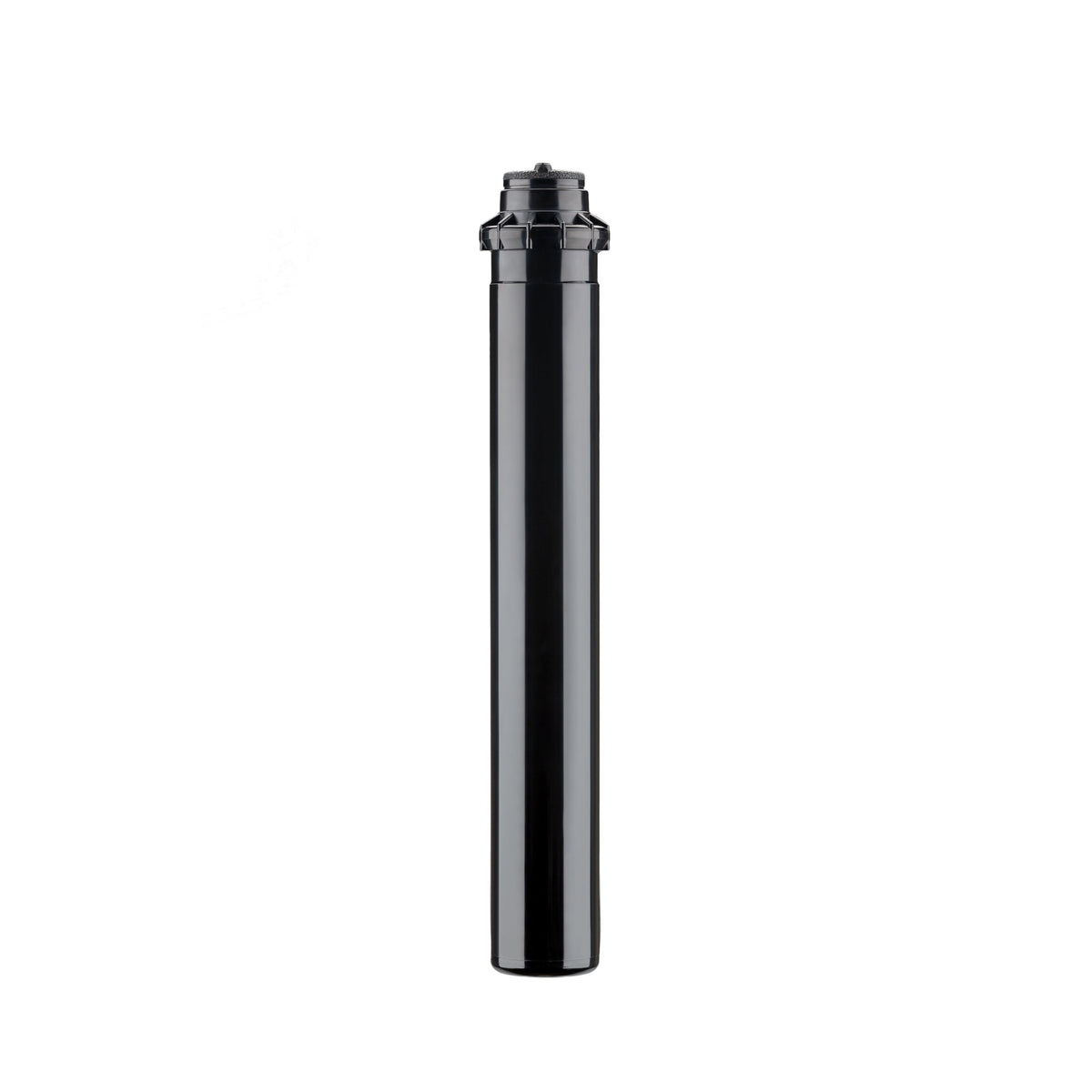

Hunter Pgh Ultra Rotor 300Mm Bsp 3/4" With Check Valve (Cv) Part And Full Circle Model

  • Sale
  • Regular price R 773.92
Shipping calculated at checkout.


The PGP Ultra takes the foundation of the best-selling PGP Rotor and raises the bar with a variety of new features developed over three decades of research, customer feedback, and lab testing. Among the most notable improvements of the PGP Ultra is its non-strippable drive and automatic arc return. These two features work to allow the turret to be turned without causing damage, and return the turret to its original arc regardless of where it is turned. Other advanced features include 34 nozzle options with several radius choices, and a headed slot and set screw. The diversity of the PGP Ultra offers system installers an array of efficient options on any site.

KEY BENEFITS
  • Patented automatic arc return feature returns the turret back to the original arc pattern if vandalised; adjustable arc from 50° to 360°

  • Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel

  • Part- and full-circle in one model for flexibility across landscapes and reduced inventory

  • Headed and slotted setscrew allows radius adjustment with a Hunter wrench or flat-blade screwdriver

  • Flat-top nozzles allow fast, easy insertion

  • QuickCheck™ arc mechanism for fast arc adjustment

ADVANCED FEATURES


AUTOMATIC ARC RETURN

This patented feature returns the turret to the original arc regardless of where it is turned. This ensures vandal protection in any environment.

NON-STRIPPABLE DRIVE

The patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage.

DRAIN CHECK VALVE (UP TO 3.0 M OF ELEVATION)

As air in the system piping can cause long-term damage to rotors and plumbing, the drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.

Operating Specifications

  • Nozzle choices: 34
  • Radius: 4.9 to 14.0 m
  • Flow: 0.07 to 3.23 m3/hr; 1.2 to 53.8 l/min
  • Recommended pressure range: 1.7 to 4.5 bar; 170 to 450 kPa
  • Operating pressure range: 1.4 to 7.0 bar; 140 to 700 kPa
  • Precipitation rate: 10 mm/hr approximately
  • Nozzle trajectory: standard = 25°, low-angle = 13°
  • Nozzle racks: 1.5 to 8.0 blue, 2.0 to 4.5 low-angle grey, 0.50 to 3.0 black, 6.0 to 13.0 green, MPR-25, MPR-30, MPR-35
  • Warranty period: 5 years

Factory-Installed Options

  • Drain check valve (up to 3 m of elevation)
  • Reclaimed water ID
  • Blue #1.5–4.0 nozzles

User-Installed Options

  • Drain check valve (up to 1 m of elevation) PGP-04 only (P/N 142300SP)
  • HSJ-0 prefabricated ¾" PVC swing joint
